We understand that material selection can make or break a project. It is the difference between a component that lasts for decades and one that fails prematurely under pressure. Today, we are examining one of our most versatile and trusted offerings: GB 65Mn Spring Steel.
Think of 65Mn as the reliable workhorse of the steel world. It possesses a unique balance of strength and flexibility that makes it the ideal candidate for applications where resilience is key. But what exactly goes into this material, and why should it be on your radar?
Standard and Equivalents Steel Grade
Navigating international steel standards can often feel like trying to solve a puzzle. To simplify things, our 65Mn steel adheres to the Chinese standard GB/T 1222, ensuring high-quality manufacturing and consistent properties. If your project requires international specifications, rest assured that 65Mn is fully equivalent to several global grades, ensuring seamless integration into your global supply chain.
| Standard | Equivalent Grade |
|---|---|
| China (GB/T 1222) | 65Mn |
| USA (ASTM A29/A29M) | 1066 |
| UK ( BS 1429 ) | 080A67 |
| Germany (DIN EN 17221) | C67E |
| Japan (JIS G4801) | SUP3 |
Chemical Composition about 65Mn steel and it’s equivalent steel
The power of 65Mn lies in its carefully balanced chemical composition. It is an alloy that uses manganese (Mn) as its secret weapon. Unlike standard carbon steel, the elevated manganese content significantly improves hardenability and strength.
But here is the critical question: How does 65Mn compare chemically to its international equivalents? Let us break it down
| Standard / Grade | Carbon (C) | Silicon (Si) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) |
|---|---|---|---|---|---|
| 65Mn (China) | 0.62 – 0.70% | 0.17 – 0.37% | 0.90 – 1.20% ⬆ | ≤ 0.035% ✅ | ≤ 0.035% ✅ |
| ASTM 1066 (USA) | 0.60 – 0.70% | 0.15 – 0.35% | 0.60 – 0.90% | ≤ 0.040% | ≤ 0.050% |
| DIN C67E (Germany) | 0.62 – 0.70% | 0.15 – 0.35% | 0.50 – 0.80% | ≤ 0.035% | ≤ 0.035% |
| JIS SUP3 (Japan) | 0.65 – 0.75% | 0.15 – 0.35% | 0.70 – 1.00% | ≤ 0.035% | ≤ 0.035% |
What Does This Comparison Tell Us?
| Key Insight | Detailed Explanation |
|---|---|
| Higher Manganese Content | Notice that 65Mn contains significantly more manganese (0.90–1.20%) than its American (0.60–0.90%), German (0.50–0.80%), or Japanese (0.70–1.00%) counterparts. This elevated manganese level is precisely what gives 65Mn its superior hardenability and deeper hardening depth. Think of it as the difference between a sponge that absorbs water only on the surface versus one that soaks it all the way through—65Mn is the latter. |
| Carbon Consistency | The carbon ranges are remarkably similar across all standards, ensuring comparable core hardness and tensile strength across different national specifications. |
| Tighter Impurity Control | 65Mn maintains stricter limits on phosphorus (≤ 0.035%) and sulfur (≤ 0.035%) compared to ASTM 1066 (P ≤ 0.040%, S ≤ 0.050%). This contributes to better steel cleanliness, improved toughness, and reduced risk of brittleness in the final product. |
Mechanical Properties About 65Mn Steel
This steel excels in environments requiring high elasticity and fatigue resistance. When properly heat-treated, it can withstand significant stress without permanent deformation.
| Property | Value | Significance |
|---|---|---|
| Tensile Strength (σb) | ≥ 980 MPa | The maximum stress it can withstand while being stretched . |
| Yield Strength (σ0.2) | ≥ 785 MPa | The point at which it begins to deform plastically . |
| Elongation (δ5) | ≥ 8% | A measure of its ductility, indicating it has “spring” . |
| Reduction of Area (ψ) | ≥ 30% | Indicates its internal toughness and resistance to cracking . |
| Hardness (Hot Rolled) | ≤ 302 HB | The as-supplied condition for optimal machinability . |
Physical Properties About 65Mn Steel
Understanding the physical constants of your material is crucial for design and machining calculations.
-
Density: 7.85 g/cm³ .
-
Critical Temperatures: The transformation points during heating and cooling are approximately Ac1=726°C and Ac3=765°C .
Applications
Have you ever wondered what keeps the suspension in your car smooth or what gives a measuring device its precise feedback? The answer often lies in a spring. Due to its high fatigue limit and resilience, 65Mn is the go-to material for components that live at the mechanical limits .
Its primary applications include:
-
Automotive Components: Clutch springs, brake springs, and valve springs .
-
General Machinery: Helical springs, compression springs, and leaf springs for load-bearing .
-
Industrial Tools: Spring washers, retaining rings, and even high-wear components like grinding machine spindles and precision machine tool screws .
Sizes and Availability
At Dongguan Otai Special Steel, we believe in flexibility. This is why we can supply 65Mn in a vast array of forms to meet your specific production needs .
-

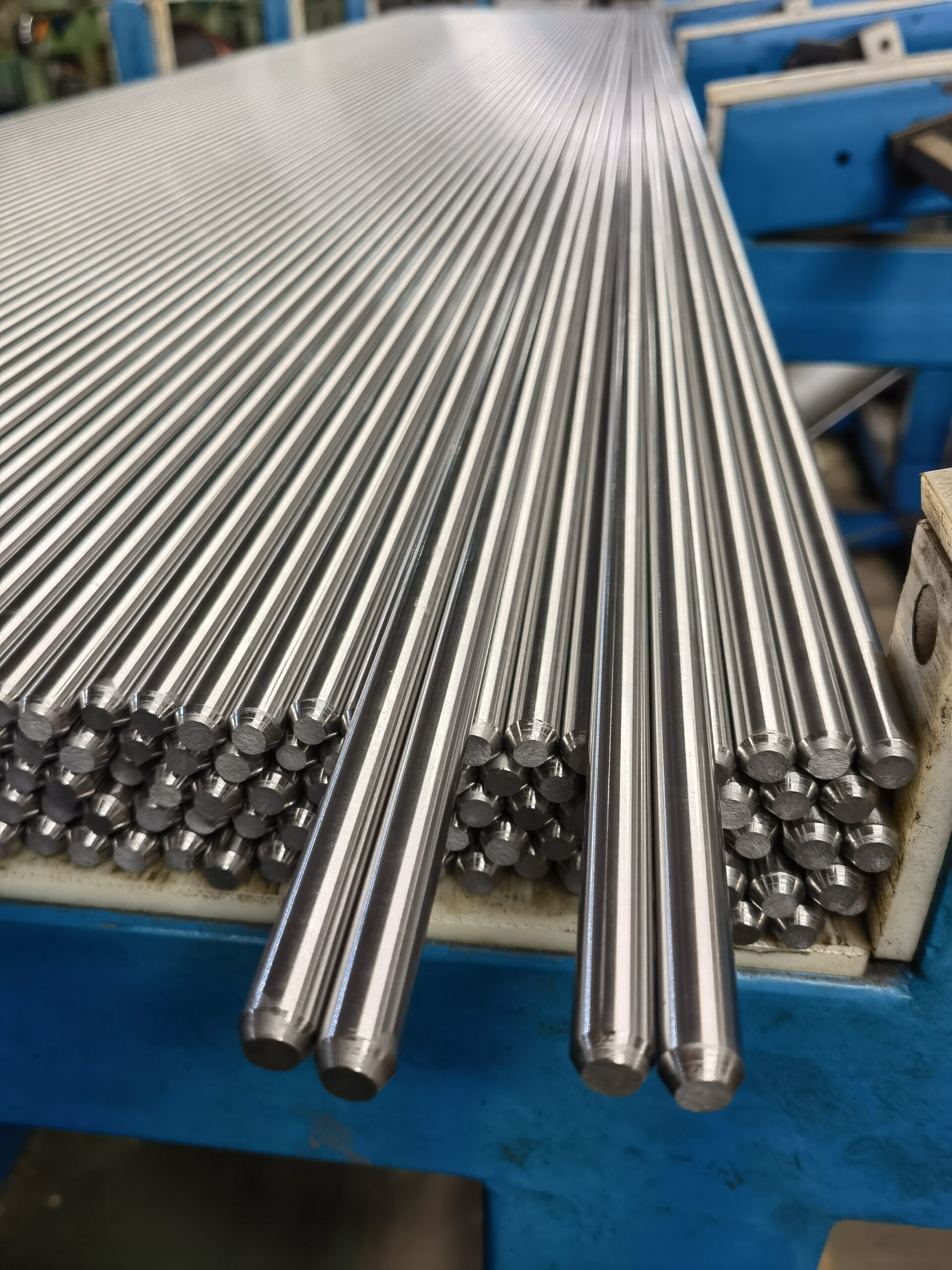

Round Bars: Diameters from Ø 2mm to 3000mm.
-

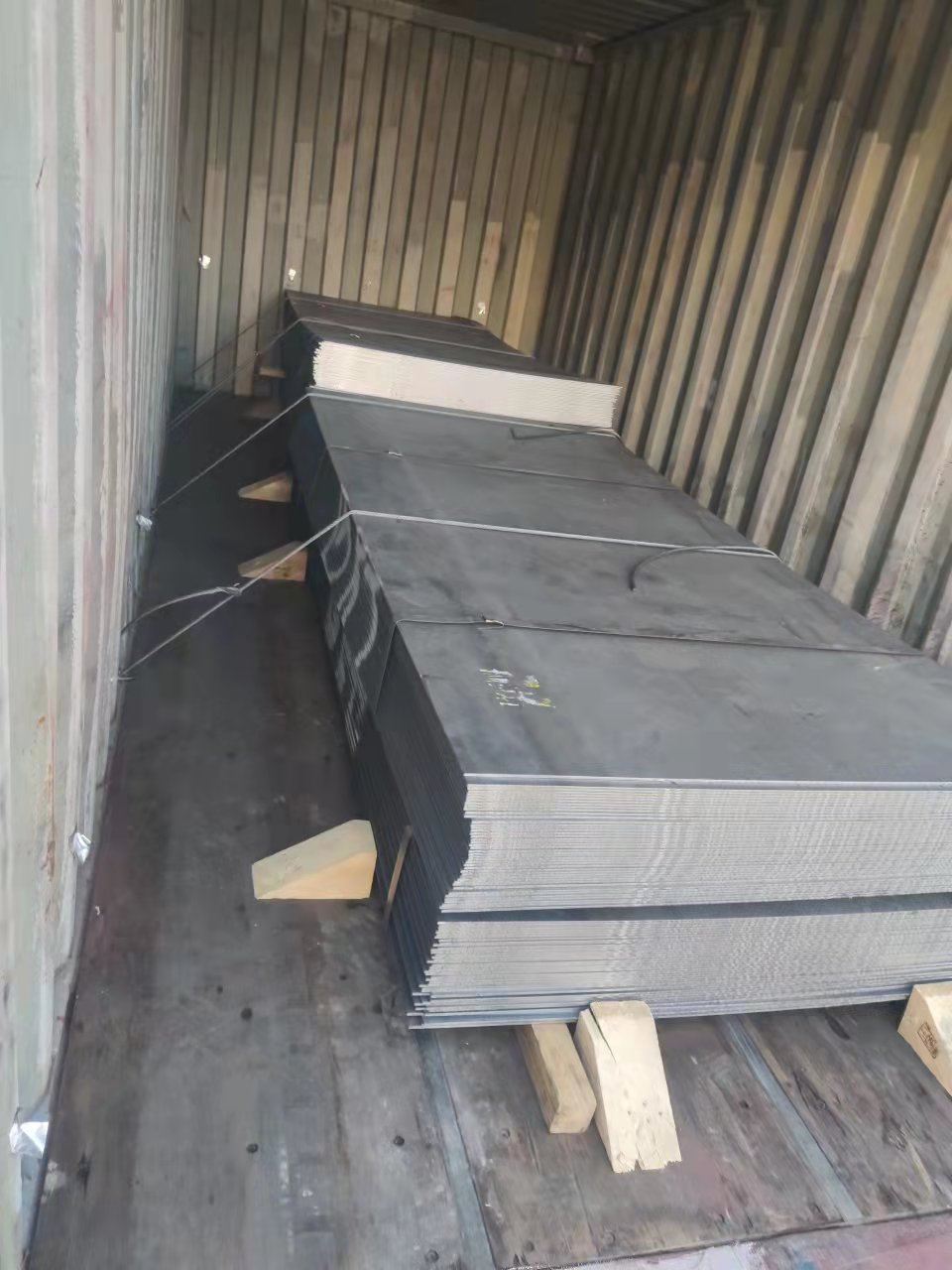

Flat Bars & Plates: Thickness from 2mm to 3000mm, with widths up to 3500mm.
-
Hexagonal Bars: Sizes from 5mm to 105mm.
The Otai Advantage
Choosing 65Mn from Dongguan Otai Special Steel means choosing a partner who understands the nuances of material science. Whether you are manufacturing a delicate instrument spring or a robust industrial leaf spring, we have the stock and the expertise to support your project.
Are you ready to build something that lasts? Contact us today to discuss your requirements, request a quote, or simply to tap into our expert knowledge. Let’s engineer the perfect solution together.
